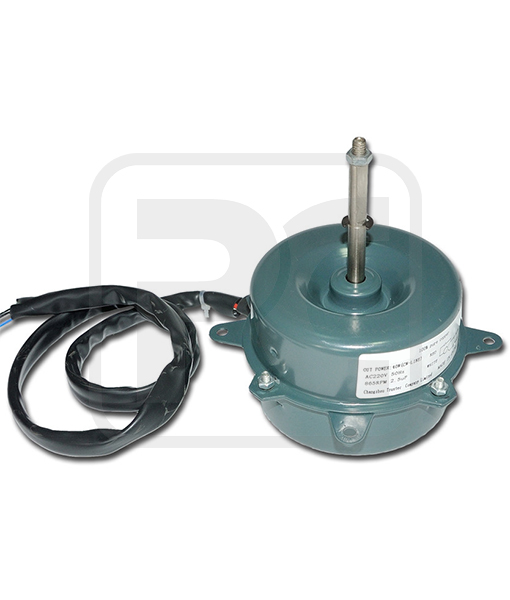

55W Outdoor Fan Motor / Single Phase Asynchronous Motor For Air Conditioner

Motor Application:

The YDK120 series outdoor fan motor are widely used in split air conditioner outdoor unit, as well as other fresh air ventilation system, also if customized mounting type, 120 series fan motor can be applied for ceiling type air conditioner.

Product Features:

Bearing: rolling bearing, NSK low noise high quality material.
Brass terminals plug-in.
Shaft: single shaft, nickel plating treatment.
Enclosure: electrophoretic coating treatment.
Winding: 100% pure copper.

25 People watching this product now!

Ac Spare Parts Shop in Dubai

Outdoor Fan Motors supplier in Dubai UAE.

We are the leading Wholesaler, Distributor, Supplier of 55W Outdoor Fan Motor / Single Phase Asynchronous Motor For Air Conditioner in Dubai UAE.

SKU: YDK120-55-6 Categories: Ac Fan Motors, Outdoor Fan Motors

Description

Technical Parameters:

Model Number	Output Power /W	Voltage /V	Frequency /Hz	Rated Speed /RPM	Rated Current /A
YDK95-20-6	20	220-240	50/60	830	0.25
YDK95-25-6	25	220-240	50/60	830	0.27
YDK95-30-6	30	220-240	50/60	830	0.3
YDK95-35-6	35	220-240	50/60	800	0.33
YDK95-40-6	40	220-240	50/60	850	0.4
YDK120-50-6	50	220-240	50/60	850	0.55
YDK120-55-6	55	220-240	50/60	850	0.57
YDK120-60-6	60	220-240	50/60	850	0.6
YDK120-70-6	70	220-240	50/60	850	0.65
