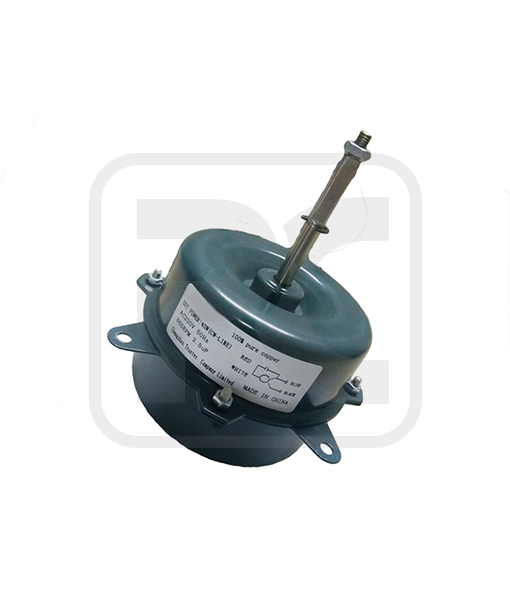

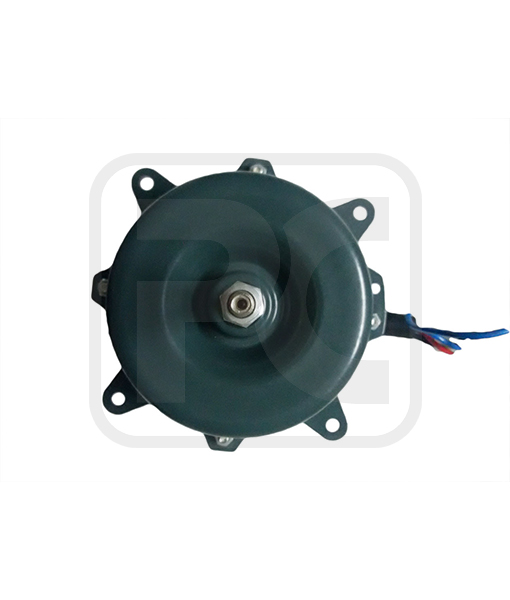

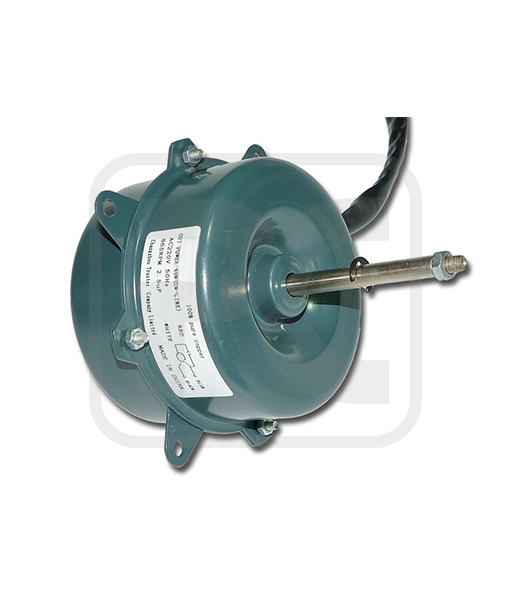

Single Phase Outdoor Fan Motor Air Conditioner Single Shaft 20W – 70W
Product Features:
1. Use NSK low noise high quality rolling bearing.
2. Nickel plating for shaft, electrophoretic coating for enclosure.
3. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
Product Applications:
1. Split air conditioner outdoor unit.
2. Fresh air ventilation system.
3. Air filtration and purification.
4. To ensure the quality of the indoor air.
5. To ensure that the indoor hot and cold load (temperature) is basically not affected by the new wind.
AC Spare Parts Supplier in Fujairah
Outdoor Fan Motors supplier in Dubai UAE.
We are the leading Wholesaler, Distributor, Supplier of Single Phase Outdoor Fan Motor Air Conditioner Single Shaft 20W – 70W in Dubai UAE.
Technical Parameters:
| Model Number | Output Power
/W |
Voltage
/V |
Frequency
/Hz |
Rated Speed
/RPM |
Rated Current
/A |
| YDK95-20-6 | 20 | 220-240 | 50/60 | 830 | 0.25 |
| YDK95-25-6 | 25 | 220-240 | 50/60 | 830 | 0.27 |
| YDK95-30-6 | 30 | 220-240 | 50/60 | 830 | 0.3 |
| YDK95-35-6 | 35 | 220-240 | 50/60 | 800 | 0.33 |
| YDK95-40-6 | 40 | 220-240 | 50/60 | 850 | 0.4 |
| YDK120-50-6 | 50 | 220-240 | 50/60 | 850 | 0.55 |
| YDK120-55-6 | 55 | 220-240 | 50/60 | 850 | 0.57 |
| YDK120-60-6 | 60 | 220-240 | 50/60 | 850 | 0.6 |
| YDK120-70-6 | 70 | 220-240 | 50/60 | 850 | 0.65 |
