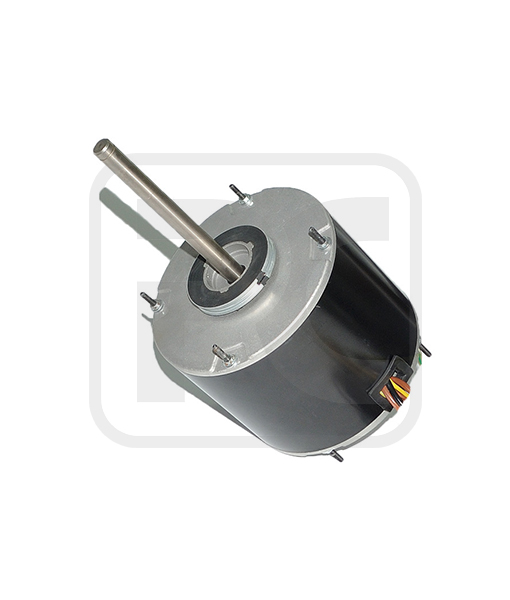

Single Phase 3 Speed AC Universal Condensing Unit Fan Motor YDK140/120 Series
21
People watching this product now!
UAE's Biggest AC Spare Parts Company
Condenser Fan Motors supplier in Dubai UAE.
We are the leading Wholesaler, Distributor, Supplier of Single Phase 3 Speed AC Universal Condensing Unit Fan Motor YDK140/120 Series in Dubai UAE.
Description
Specifications
| Powerstar: | Powerstar |
| Type: | Asynchronous Moter |
| Rated Voltage | 208-230 |
| Frequency: | 50/60hz |
| Output Power: | 1/6-1/2 |
| RPM: | 825/1075 |
| Protect Feature: | totally enclosed |
| Speed: | 3 |
| APMS: | 1-3.9 |
| Rotation | REV |
| Phase: | Single-phase |
| Bearing: | Ball bearing |
| Place of Origin: | Guangdong China (Mainland) |
| Certification: | ROHS,UL |
| Features: | A. smooth running, B. long work times and Low temperature C. low noise, D. steady performance. |
| Specifications: | • Reversible plug for easy rotation • Class H Insulation • Quick installation • Energy efficient • Quiet operation • Ball bearing • Dual voltage 115/208-230 voltage • Diameter: Steel cover144mm • Automatic overload • Operating temp -10-43 degree • Power:150-250W• Rated Frequency:50/60Hz • Number of Pole: 6/8Pole |
condenser fan motor
| Model | Power(HP) | Voltage(V) | Speed | RPM | Amps | ROT | Protect Feature | Bearing |
| YDK140-120-6A | 1/6 | 208-230 | 3 | 825 | 1.9 | reversible | totally enclosed | ball |
| YDK140-150-6A | 1/5 | 208-230 | 3 | 825 | 1.5 | reversible | totally enclosed | ball |
| YDK140-185-6A3 | 1/5 | 208-230 | 3 | 825 | 1.2 | reversible | totally enclosed | ball |
| YDK140-185-6A6 | 1/4 | 208-230 | 3 | 825 | 1 | reversible | totally enclosed | ball |
| YDK140-185-6A7 | 1/4 | 208-230 | 3 | 1075 | 2.8 | reversible | totally enclosed | ball |
| YDK140-185-6A8 | 1/4 | 208-230 | 3 | 1075 | 2 | reversible | totally enclosed | ball |
| YDK140-185-6A9 | 1/5 | 208-230 | 3 | 1075 | 1.7 | reversible | totally enclosed | ball |
| YDK140-185-6A10 | 1/4 | 208-230 | 3 | 1075 | 1.5 | reversible | totally enclosed | ball |
| YDK140-185-6A11 | 1/4 | 208-230 | 3 | 1075 | 3.9 | reversible | totally enclosed | ball |
| YDK140-185-6A12 | 1/4 | 208-230 | 3 | 1075 | 2.2 | reversible | totally enclosed | ball |
| YDK140-185-6A13 | 1/4 | 208-230 | 3 | 1075 | 1.6 | reversible | totally enclosed | ball |
| YDK140-185-4A15 | 1/4 | 208-230 | 3 | 1075 | 1.3 | reversible | totally enclosed | ball |
