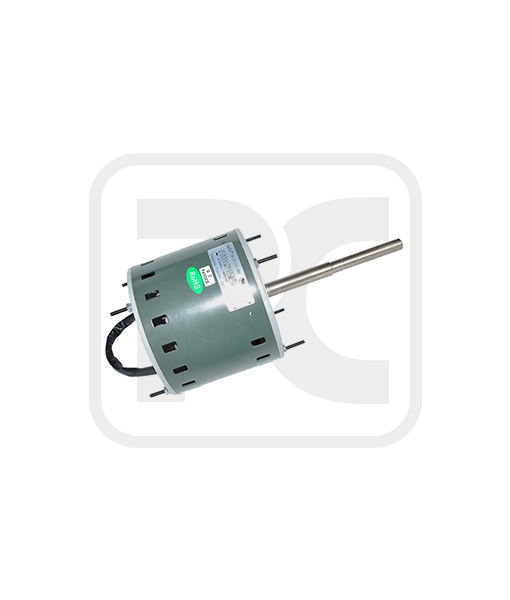

Condensing Unit Fan Motor 5uF Capacitor 1/4 HP 1075 RPM Single Speed
Product application:
Condensers, window type air conditioner, fresh air ventilation system
Product features:
1. Silicon Steel for Rotor and Stator.
2. Nickel plating for Steel Shaft.
3. Copper enameled wire winding.
4. NSK low noise high quality rolling bearing.
5. Electrophoretic coating for enclosure.
10
People watching this product now!
AC Spare Parts Supplier in Fujairah
Condenser Fan Motors supplier in Dubai UAE.
We are the leading Wholesaler, Distributor, Supplier of Condensing Unit Fan Motor 5uF Capacitor 1/4 HP 1075 RPM Single Speed in Dubai UAE.
Description
Product specification:
| Model Number | Voltage
/V |
Frequency
/Hz |
Power | Speed
/RPM |
Rotation | Capacitor
/MDF/VAC |
| YDK140-120-6A | 208-230 | 60 | 1/6HP | 1075/2 SPD | REVERSIBLE | 5/370 |
| YDK140-120-6A5 | 208-230 | 60 | 1/6HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-120-6A6 | 208-230 | 60 | 1/6HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-120-6A7 | 115 | 60 | 1/6HP | 1075/3 SPD | REVERSIBLE | 5/370 |
| YDK140-120-6A8 | 115 | 60 | 1/6HP | 1075/3 SPD | REVERSIBLE | 5/370 |
| YDK140-150-6A | 208-230 | 60 | 1/5HP | 1075/2 SPD | REVERSIBLE | 5/370 |
| YDK140-150-6A2 | 220-240 | 50 | 1/5HP | 900 | CW-SE | 5/370 |
| YDK140-185-6A3 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A6 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A7 | 208-230 | 60 | 1/4HP | 1075/3 SPD | REVERSIBLE | 7.5/370 |
| YDK140-185-6A8 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A9 | 115 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A10 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A11 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A12 | 460 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-4A13 | 220-240 | 50 | 1/4HP | 1050 | REVERSIBLE | 10/370 |
| YDK140-185-4A15 | 208-230 | 60 | 1/4HP | 1625 | REVERSIBLE | 5/370 |
| YDK140-185-4A16 | 115 | 60 | 1/4HP | 1625 | REVERSIBLE | 5/370 |
| YDK140-245-6A2 | 208-230 | 60 | 1/3HP | 1075/3 SPD | REVERSIBLE | 7.5/370 |
| YDK140-245-6A3 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 |
| YDK140-245-6A4 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 |
| YDK140-245-6A9 | 208-230 | 60 | 1/3HP | 1075/3 SPD | REVERSIBLE | 7.5/370 |
| YDK140-245-6A10 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 |
