Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System
Features:

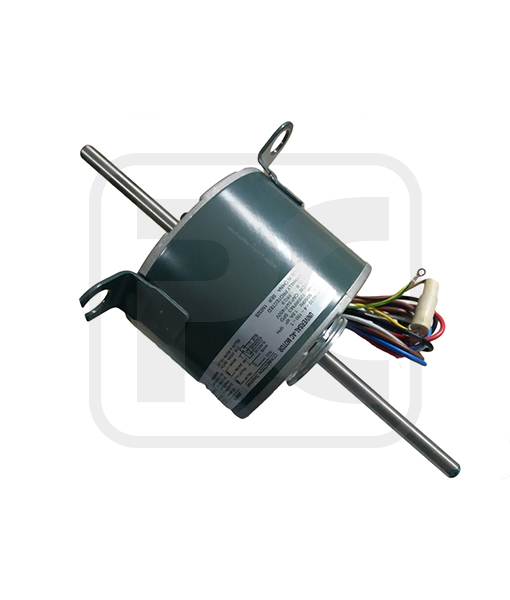

1. Single-Phase double shaft motor with steel housing, designed for window type air conditioner.
2. High quality pure copper winding with excellent insulation and heat transmission properties.
3. Pretty appearance, low starting current, smooth turning, low temperature rise, low noise and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life.
6. Models with power 1/6HP, 1/5HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP.
7. Special motors can be designed according to customer’s requirement. Pure copper coil or aluminum coil can be chosen.
Product Applications:
1. Window type air conditioner.
2. Fresh air ventilation system.
3. Air filtration and purification.
Middle East's Biggest AC Spare Parts Company
Air conditioner Fan motor supplier in Dubai UAE.
We are the leading Wholesaler, Distributor, Supplier of Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System in Dubai UAE.
Parameters:
Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.
| Model Number | Voltage /V |
Frequency /Hz |
Power | Speed /RPM |
Rotation | Capacitor /MDF/VAC |
OEM Model |
| YSK140-120-6A | 208-230 | 60 | 1/6HP | 1095/3 SPD | CCW-LE | 5/370 | 5KCP39DGS008T |
| YSK140-120-6A2 | 208-230 | 60 | 1/6HP | 1000/2 SPD | CW-LE | 5/370 | 5KCP39DGM511T |
| YSK140-120-6A5 | 208-230 | 60 | 1/6HP | 1095/3 SPD | CCW-LE | 5/370 | 5KCP39DGM004T |
| YSK140-120-6A6 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CCW-LE | 5/370 | F48U05B09 |
| YSK140-120-6A7 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CW-LE | 5/370 | K55HXPKG-5158 |
| YSK140-120-6A18 | 208-230 | 60 | 1/6HP | 1000/2 SPD | CW-LE | 5/370 | F48SE6MA61 |
| YSK140-120-6A3 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CW-LE | 5/370 | ACE-635-16 |
| YSK140-120-4A22 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CCW-LE | 5/370 | F48CS6MA14 |
| YSK140-120-4A23 | 115 | 60 | 1/6HP | 1075/3 SPD | CCW-LE | 5/370 | D754 |
| YSK140/30-150-4 | 220/230 | 50 | 1/5HP | 1200/3 SPD | REVERSIBLE | 5/370 | |
| YSK140-150-6A | 208-230 | 60 | 1/5HP | 1115/3 SPD | CCW-LE | 5/370 | 5KCP39FGM4440 |
| YSK140-150-6A2 | 208-230 | 60 | 1/5HP | 1075/3 SPD | CW-LE | 4/370 | 5KCP39FGM672S |
| YSK140-150-6A3 | 208-230 | 60 | 1/5HP | 1100/2 SPD | CW-LE | 5/370 | 5KCP39FGM639T |
| YSK140-150-6A4 | 208-230 | 60 | 1/5HP | 1115/3 SPD | CW-LE | 5/370 | F48U01A30 |
| YSK140-150-6A5 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | 5KCP39HGS635S |
| YSK140-150-6A6 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | K55HXLEK-5966 |
| YSK140-150-6A7 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | ACE-000-33C |
| YSK140-150-6A10 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | F48533B382U-Y |
| YSK140-150-6A14 | 208-230 | 60 | 1/5HP | 1050/2 SPD | REVERSIBLE | 4/370 | K55ZZEHN-4921 |
| YSK140-150-4A21 | 208-230 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D775 |
| YSK140-150-4A22 | 115 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D776 |
| YSK140-150-4A | 208-230 | 60 | 1/5HP | 1350/2 SPD | CCW-LE | 5/370 | KA5HXNGT-9416C |
| YSK140-150-4A2 | 208-230 | 50 | 1/5HP | 1360/3 SPD | REVERSIBLE | 5/400 | PM410542 |
