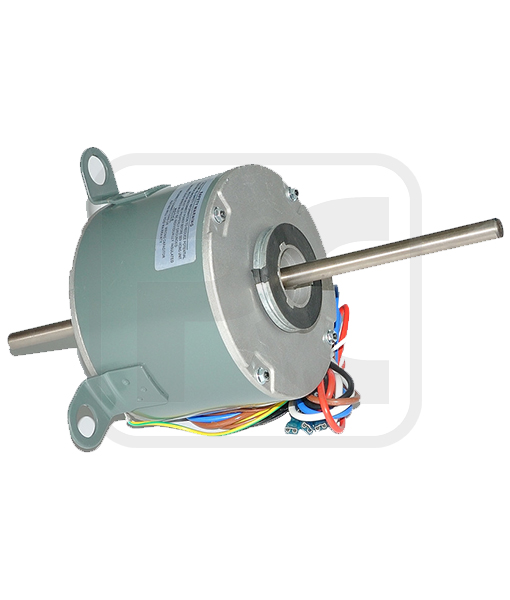

High Efficency Low Temperature Air Conditioner Fan Motor 60Hz 208V – 230V
Motor Features:
1.Large Wind Amount.
2.Top company position as Carrier, York, McQuay, Trane and China Midea, Gree.
3.It is used in 2P, 3P, 4P Split type indoor air conditioner.
4.Brass terminals plug-in.
5.Steel end cap plated, rolled steel shell or resin packed.
Motor Application:
1. Air refresher, indoor unit of air conditioner.
2.Air purifier, row dust exhaust fan, fire smoke ventilation machine.
3.Pulse dust collector, cyclone dust collector, purification tower.
4.It adopts high quality thermost encapsulation materials.
5.OEM/ODM offered.
UAE's Biggest AC Spare Parts Company
Air conditioner Fan motor supplier in Dubai UAE.
We are the leading Wholesaler, Distributor, Supplier of High Efficency Low Temperature Air Conditioner Fan Motor 60Hz 208V – 230V in Dubai UAE.
Motor Specification:
Note: the following motor specification is customized according to customer requirement.
| Model Number | Voltage /V |
Frequency /Hz |
Power | Speed /RPM |
Rotation | Capacitor /MDF/VAC |
OEM Model |
| YSK140-550-6A | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 15/370 | 5KCP39PGM602T |
| YSK140-550-4A2 | 208-230 | 60 | 3/4HP | 1350/3 SPD | REVERSIBLE | 12/370 | PM330442 |
| YSK140-550-6A3 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 12/370 | PM330441 |
| YSK140-550-6A4 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 12370 | PM330450 |
| YSK140-550-6A5 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 12/370 | PM330440 |
| YSK140-550-6A7 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 15/370 | 5KCP39PFM210S |
| YSK140-550-4A8 | 208-230 | 60 | 3/4HP | 1625/3 SPD | REVERSIBLE | 7.5/370 | FASCO D786 |
| YSK140-550-4A9 | 208-230 | 60 | 3/4HP | 1625 | REVERSIBLE | 7.5/370 | FASCO D789 |
| YSK140-735-6A | 208-230 | 60 | 1HP | 1125 | CW-LE | 22/440 | 5KCP39SFU286S |
