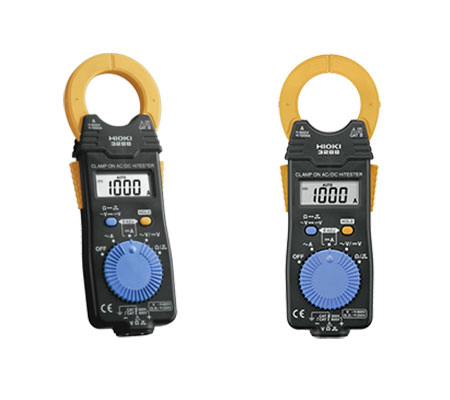

Hioki Clamp On AC/DC HiTester – Model 3288

Hioki Clamp On AC/DC HiTester

Compact & Easy, One-Touch Maintenance on All Types of AC/DC Equipment

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires. CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage) Key Features • Model 3288-20: True RMS • Use the 3288 for high current measurements such as UPS emergency batteries and train motors • Voltage, resistance, and continuity check functions Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.

16 People watching this product now!

AC Spare Parts Supplier in Fujairah

Hioki supplier in Dubai UAE.

We are the leading Wholesaler, Distributor, Supplier of Hioki Clamp On AC/DC HiTester – Model 3288 in Dubai UAE.

SKU: 3288 Category:
Description
3288 3288-20
DC Current range 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.		 100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, Average rectified)		 4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, True RMS)
Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Crest factor N/A 3 or less (2 at 1000 A range, 1.5 at Voltage)
Other functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 60 hours Coin type lithium battery (CR2032) ×1, Continuous use 35 hours
Core jaw dia. φ 35 mm (1.38 in)
Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
Accessories Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1

Air Conditioning & Refrigeration Spare Parts Suppliers in Dubai. Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.
