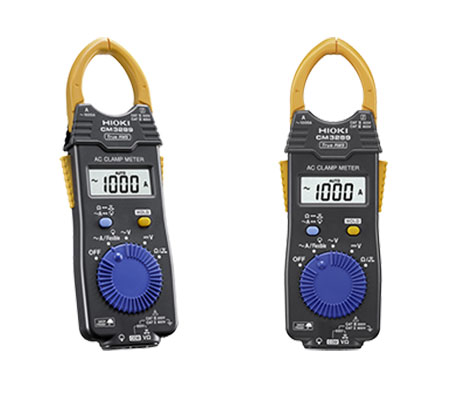

Hioki AC Clamp Meter – Model CM3289
Hioki AC Clamp Meter
Quickly clamp wires in even more confined spaces!
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -25° C to 65° C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots. CAT IV 300 V (Current) CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage) Key Features • The CM3289 is the successor to the popular 3280-20F with a redesigned thinner sensor to help you get into the tightest spaces. • New redesigned sensor for even easier clamping (CM3289) • Expanded -25 °C to 65 °C operating temperature range • Model CM3289: Measure even harmonic waveform components using the True RMS method • Model 3280-10F: Measure the fundamental waveform component using the average rectified method • Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires Hioki AC Clamp Meter Dealers, Distributors in Dubai UAE.
Ac Spare Parts Shop in Dubai
We are the leading Wholesaler, Distributor, Supplier of Hioki AC Clamp Meter – Model CM3289 in Dubai UAE.
| AC Current range | 42.00 to 1000 A, 3 ranges (40 Hz to 1 kHz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|---|---|
| DC Voltage range | 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
| AC Voltage range | 4.200 V to 600 V, 4 ranges (45 to 500 Hz, True RMS), Basic accuracy: ±1.8 % rdg. ±7 dgt. |
| Crest factor | 2.5 or less at 2500 counts (Linearly decreases to 1.5 or less at 4200 count) |
| Resistance range | 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
| Other functions | Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Display | LCD, max. 4199 dgt., Display refresh rate: 400 ms |
| Power supply | Coin type lithium battery (CR2032) ×1 Continuous use 70 hours |
| Core jaw dia. | φ 33 mm (1.30 in) |
| Dimensions and mass | 57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
| Accessories | CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1 |
| Core jaw dia. | φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in)) |
|---|---|
| AC Current | 419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.) |
| Cable length | 800 mm (31.5 in) |
Air Conditioning & Refrigeration Spare Parts Suppliers in Dubai. Hioki AC Clamp Meter Dealers, Distributors in Dubai UAE.
